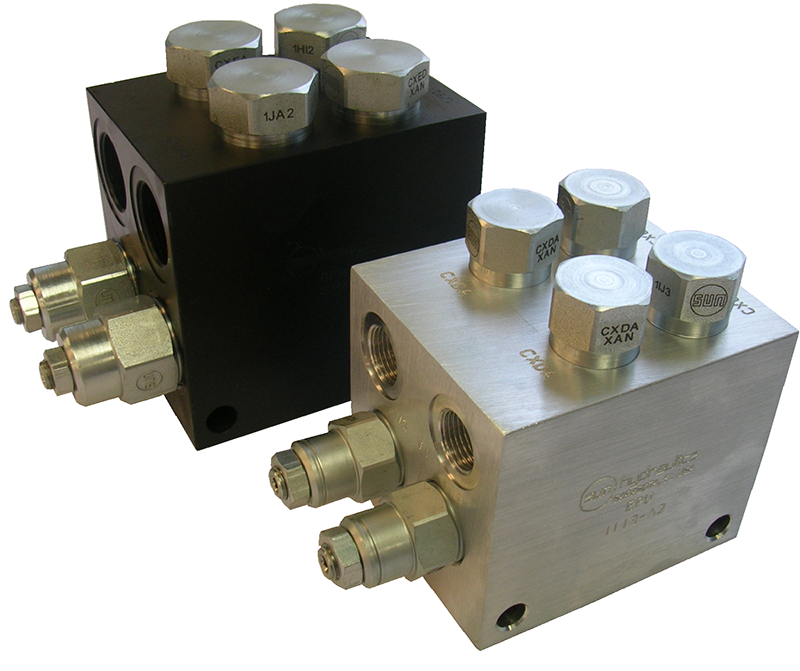

Cushion / lock manifolds

Separate T-port for return oil.

Separate T-port for return oil, shuttle for brake port.

Separate T-port for return oil, possible to close T.

Separate T-port for return oil, shuttle for brake port, possible to close T.

Proportional Dual Motion Control serie 1, pipe mounted. Nominal capacity 9 gpm (34 lpm).

Proportional Dual Motion Control serie 2, pipe mounted. Nominal capacity 20 gpm (75 lpm).
