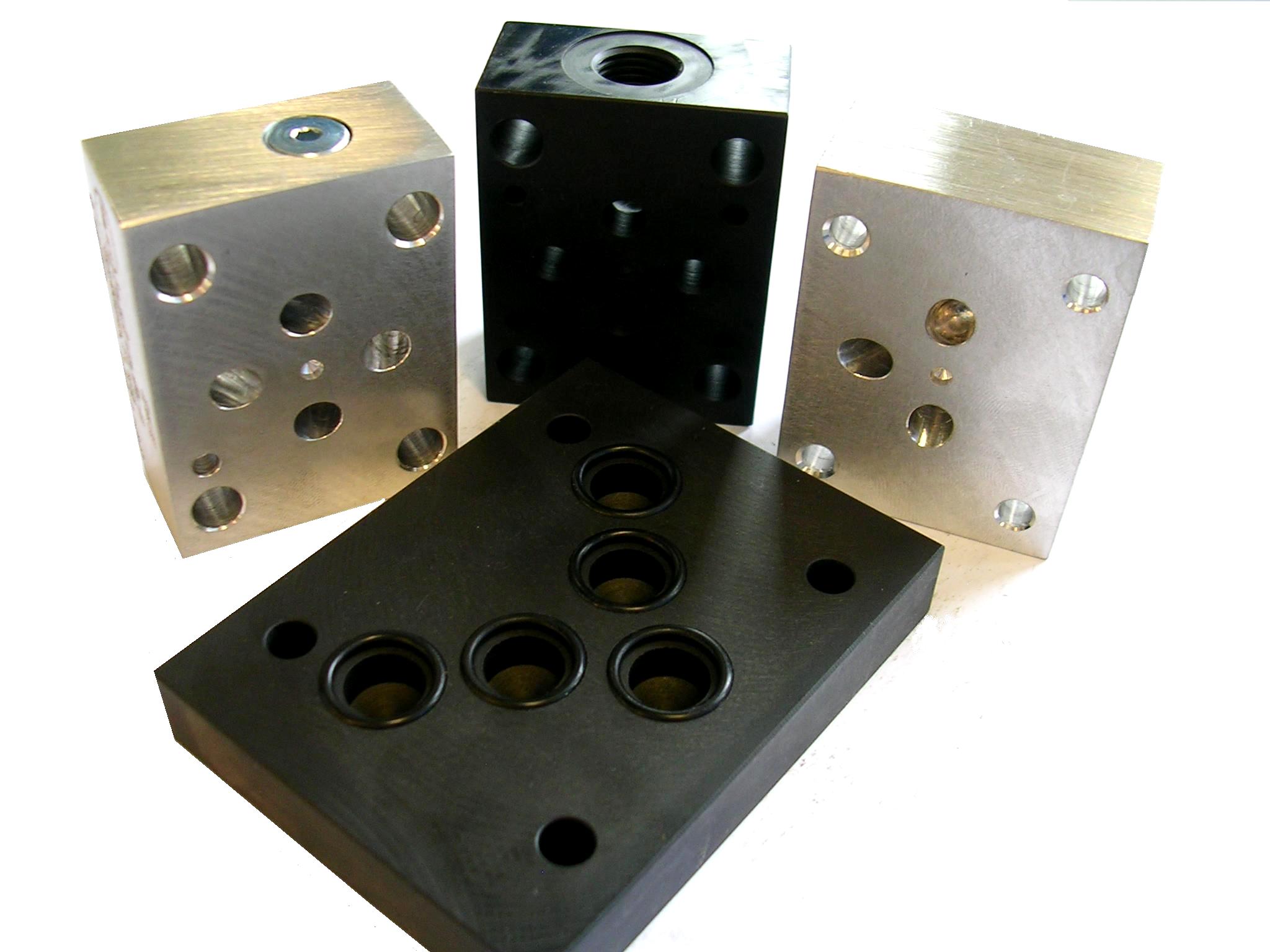

Reducing adapters are used when you need to convert sizes, for example to reduce the sandwich size between NG10 and NG6. We offer easy-to-mount reducing adapters with ready-made screws for simple installation, as well as adapters for conversion from, for example, MOOG to ISO/CETOP standards. Covers and flushing plates are used, among other things, during system startup to flush the system or when the sandwich stack does not include a top-mounted directional valve. Flushing plates can also serve as practical solutions for specific functional challenges. Gauge plates are useful when additional measurement ports are needed or to complement the stack with external connections, and they can also function as spacer plates to create space within the stack. There are also spacer plates without gauge ports available. All plates and covers are available in aluminum (3000 psi / 210 bar) or steel (5000 psi / 350 bar) and can be supplied with surface treatment for increased durability.
With transition, P to A, B to T.
With transition, P to B, A to T.
With transition, P to T, A and B blocked.
With transition, A to B, P and T blocked.
With transition, P to B, A and T blocked.
A and B.
P and B.
P and A.
P, T, A and B.
Through P, T, T, A and B.
Through P, T, T, A and B.

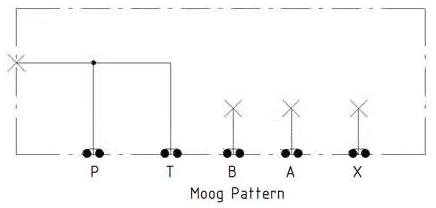

Retainer plate with blocked x and y. Please note this prodcut is replaced by HN-561.
