Subplates

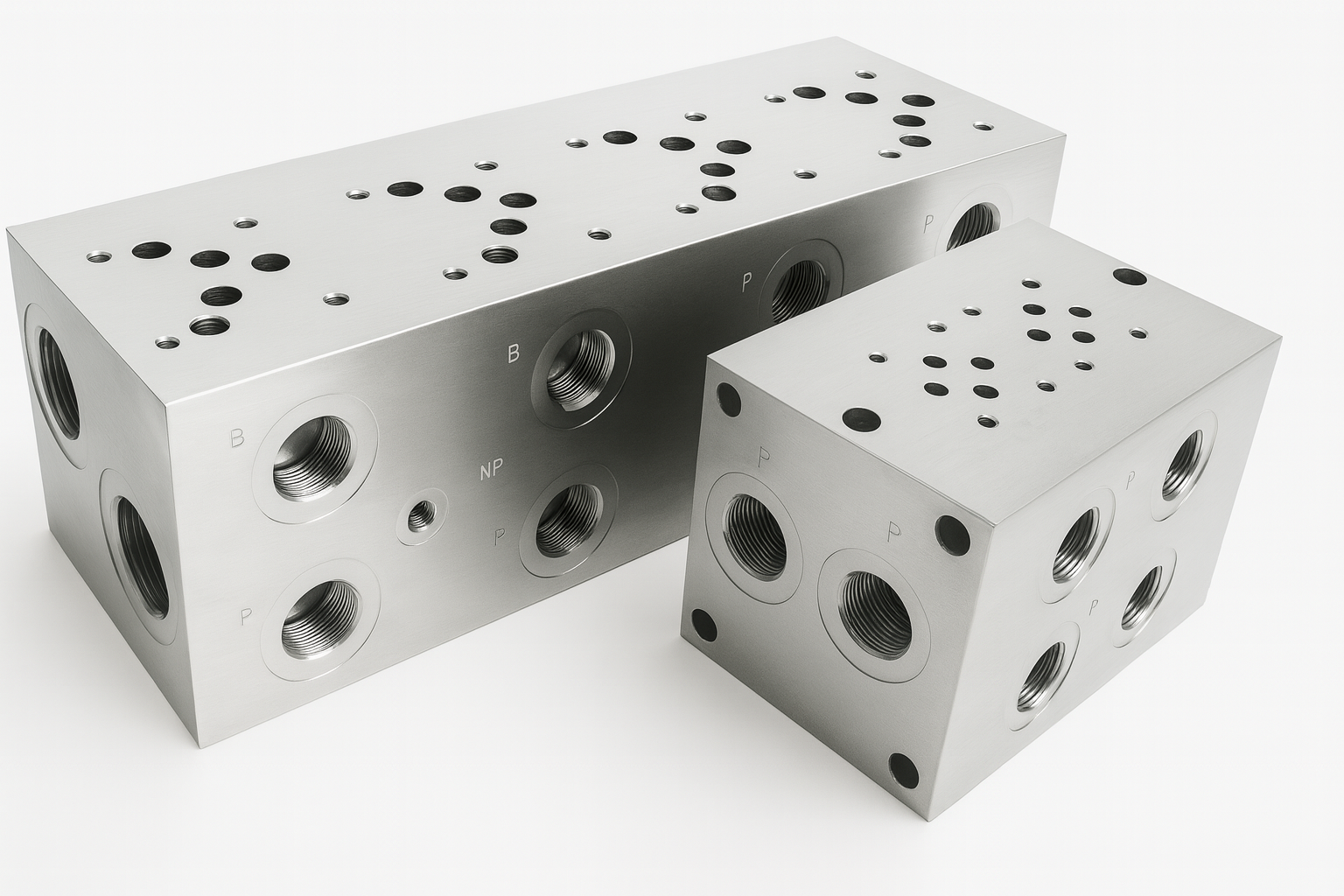

For specific functions requiring dedicated valves or components, sub plates with integrated cavities are available. These are also compatible with sandwich manifolds from any manufacturer and come in the same standard sizes (NG6, NG10, NG16, NG25). Integrated cavities allow direct installation of components like pressure relief or pressure reducing valves within the sub plate itself, simplifying installation and reducing the need for external parts.

Subplates

Subplates with cartridge

Relief P to T. Relief P to T.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
RPCC-L*N-Z2F/S
Cavity: T-162A
Height of Manifold: 38,1

Subplates with cartridge

Relief P to T. Relief P to T.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
RPEC-L*N-FSU/S
Cavity: T-10A
Height of Manifold: 50,8
RPEC-L*N-FSV/S
Cavity: T-10A
Height of Manifold: 49,3
RPEC-L*N-ZHV/S
Cavity: T-10A
Height of Manifold: 62,0
RPGC-L*N-ZLZ/S
Cavity: T-3A
Height of Manifold: 49,3
RPGC-L*N-CSX/S
Cavity: T-3A
Height of Manifold: 49,3

Subplates with cartridge

Relief P to T. Relief P to T.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
RPEC-L*N-FSW/S
Cavity: T-10A
Height of Manifold: 49,3
RPIC-L*N-WBE/T
Cavity: T-16A
Height of Manifold: 87,4

Subplates with cartridge

Relief P to T, check on P. Relief P to T, check on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
YRCC-L*N-BU/S
Cavity: T-10A
Height of Manifold: 50,8
YREJ-L*N-BV/S
Cavity: T-10A
Height of Manifold: 49,3

Subplates with cartridge

Air-bleed and start-up. Air-bleed and start-up.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
NQEB-XAN-CSV/S
Cavity: T-3A
Height of Manifold: 49,3
NQEB-XAN-ZLZ/S
Cavity: T-3A
Height of Manifold: 49,3
NQEB-XAN-CSX/S
Cavity: T-3A
Height of Manifold: 49,3

Subplates with cartridge

Reducing on P. Reducing on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
PBDB-L*N-ESU/S
Cavity: T-11A
Height of Manifold: 50,8
PBFB-L*N-BSV/S
Cavity: T-2A
Height of Manifold: 49,3
PBHB-L*N-HSX/S
Cavity: T-17A
Height of Manifold: 87,4

Subplates with cartridge

Reducing/ relieving on P. Reducing/ relieving on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
PPDB-L*N-ESU/S
Cavity: T-11A
Height of Manifold: 50,8
PPFB-L*N-BSV/S
Cavity: T-2A
Height of Manifold: 49,3
PPHB-L*N-HSX/S
Cavity: T-17A
Height of Manifold: 87,4

Subplates with cartridge

Bypass compensator for proportional valves. Bypass compensator for proportional valves.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
YFCL-XHN-BU/S
Cavity: T-11A
Height of Manifold: 50,8
YFES-XHN-BV/S
Cavity: T-2A
Height of Manifold: 50,8

Subplates with cartridge

Relief P to T, bypass flow regulator. Relief P to T, bypass flow regulator.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
YFCS-LCN-BU/T
Cavity: T-11A
Height of Manifold: 50,8
YFED-LAN-BV/S
Cavity: T-2A
Height of Manifold: 50,8

Subplates with cartridge

Relief P to T, regenerative B to A. Relief P to T, regenerative B to A.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
YDCG-LHN-BV/T
Cavity: T-11A
Height of Manifold: 63,5
YDEM-LHN-BW/S
Cavity: T-2A
Height of Manifold: 74,7

Subplates with cartridge

Relief P to T. Relief P to T.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
RPEC-L*N-FTU/S
Cavity: T-10A
Height of Manifold: 50,8
RPEC-L*N-FTV/S
Cavity: T-10A
Height of Manifold: 49,3
RPGC-L*N-VTG/S
Cavity: T-3A
Height of Manifold: 49,3
RPGC-L*N-CTS/S
Cavity: T-3A
Height of Manifold: 49,3

Subplates with cartridge

Air-bleed and start-up. Air-bleed and start-up.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
NQEB-XAN-CTU/S
Cavity: T-3A
Height of Manifold: 50,8
NQEB-XAN-CTV/S
Cavity: T-3A
Height of Manifold: 49,3
NQEB-XAN-VTG/S
Cavity: T-3A
Height of Manifold: 62,0
NQEB-XAN-CTS/S
Cavity: T-3A
Height of Manifold: 49,3

Subplates with cartridge

Reducing on P. Reducing on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
PBDB-L*N-ETU/S
Cavity: T-11A
Height of Manifold: 50,8
PBFB-L*N-BTV/S
Cavity: T-2A
Height of Manifold: 49,3
PBHB-L*N-HTX/S
Cavity: T-17A
Height of Manifold: 87,4

Subplates with cartridge

Reducing/ relieving on P. Reducing/ relieving on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
PBDB-L*N-ETU/S
Cavity: T-11A
Height of Manifold: 50,8
PPFB-L*N-BTV/S
Cavity: T-2A
Height of Manifold: 49,3
PPHB-L*N-HTX/S
Cavity: T-17A
Height of Manifold: 87,4

Subplates with cartridge

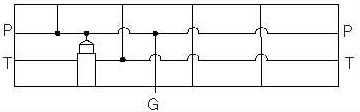

One station. One station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VPA/S
Cavity: T-10A
Height of Manifold: 75,0
VNA/S
Cavity: T-3A
Height of Manifold: 87,4
VMR/S
Cavity: T-3A
Height of Manifold: 100,0
VLJ/S
Cavity: T-3A
Height of Manifold: 100,0
VLX/S
Cavity: T-3A
Height of Manifold: 119,9

Subplates with cartridge

One station. One station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VNW/S
Cavity: T-3A
Height of Manifold: 100,0
VRT/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

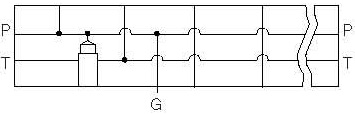

Two station. Two station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VPB/S
Cavity: T-10A
Height of Manifold: 74,7
VNB/S
Cavity: T-3A
Height of Manifold: 87,4
VMT/S
Cavity: T-3A
Height of Manifold: 100,0
VLK/S
Cavity: T-3A
Height of Manifold: 100,0
VLY/S
Cavity: T-3A
Height of Manifold: 119,9

Subplates with cartridge

Two station. Two station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VNX/S
Cavity: T-3A
Height of Manifold: 100,0
VRV/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Three station. Three station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VPC/S
Cavity: T-10A
Height of Manifold: 74,7
VNC/S
Cavity: T-3A
Height of Manifold: 87,4
VMN/S
Cavity: T-3A
Height of Manifold: 100,0
VLL/S
Cavity: T-3A
Height of Manifold: 119,9
VLZ/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Three station. Three station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VNY/S
Cavity: T-3A
Height of Manifold: 100,0
VRW/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Four station. Four station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VPD/S
Cavity: T-10A
Height of Manifold: 74,7
VND/S
Cavity: T-3A
Height of Manifold: 87,4
VMX/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Four station. Four station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VNZ/S
Cavity: T-3A
Height of Manifold: 100,0
VRX/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Five station. Five station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VPE/S
Cavity: T-10A
Height of Manifold: 74,7
VNE/S
Cavity: T-3A
Height of Manifold: 87,4
VMY/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Five station. Five station.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
VMA/S
Cavity: T-3A
Height of Manifold: 100,0
VRY/S
Cavity: T-3A
Height of Manifold: 100,0

Subplates with cartridge

Relief P to T. Relief P to T.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
RPEC-L*N-FRU/S
Cavity: T-10A
Height of Manifold: 50,8
RPEC-L*N-FRV/S
Cavity: T-10A
Height of Manifold: 53,8
RPGC-L*N-WVZ/S
Cavity: T-3A
Height of Manifold: 49,3
RPGC-L*N-CRX/S
Cavity: T-3A
Height of Manifold: 55,4

Subplates with cartridge

Relief P to T, check on P. Relief P to T, check on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
YRCB-LAN-BU/S
Cavity: T-10A
Height of Manifold: 50,8
YREQ-LAN-BV/S
Cavity: T-10A
Height of Manifold: 49,3

Subplates with cartridge

Air-bleed and start-up. Air-bleed and start-up.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
NQEB-XAN-CRV/S
Cavity: T-3A
Height of Manifold: 49,3
NQEB-XAN-WVZ/S
Cavity: T-3A
Height of Manifold: 49,3
NQEB-XAN-CRX/S
Cavity: T-3A
Height of Manifold: 55,4

Subplates with cartridge

Reducing on P. Reducing on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
PBDB-L*N-ERU/S
Cavity: T-11A
Height of Manifold: 50,8
PBFB-L*N-BRV/S
Cavity: T-2A
Height of Manifold: 49,3
PBHB-L*N-HRX/S
Cavity: T-17A
Height of Manifold: 87,4

Subplates with cartridge

Reducing/ relieving on P. Reducing/ relieving on P.

NG 6
NG 10
NG 10 x&y
NG 16
NG 25
PPDB-L*N-ERU/S
Cavity: T-11A
Height of Manifold: 50,8
PPFB-L*N-BRV/S
Cavity: T-2A
Height of Manifold: 49,3
PPHB-L*N-HRX/S
Cavity: T-17A
Height of Manifold: 87,4
