Sub plate

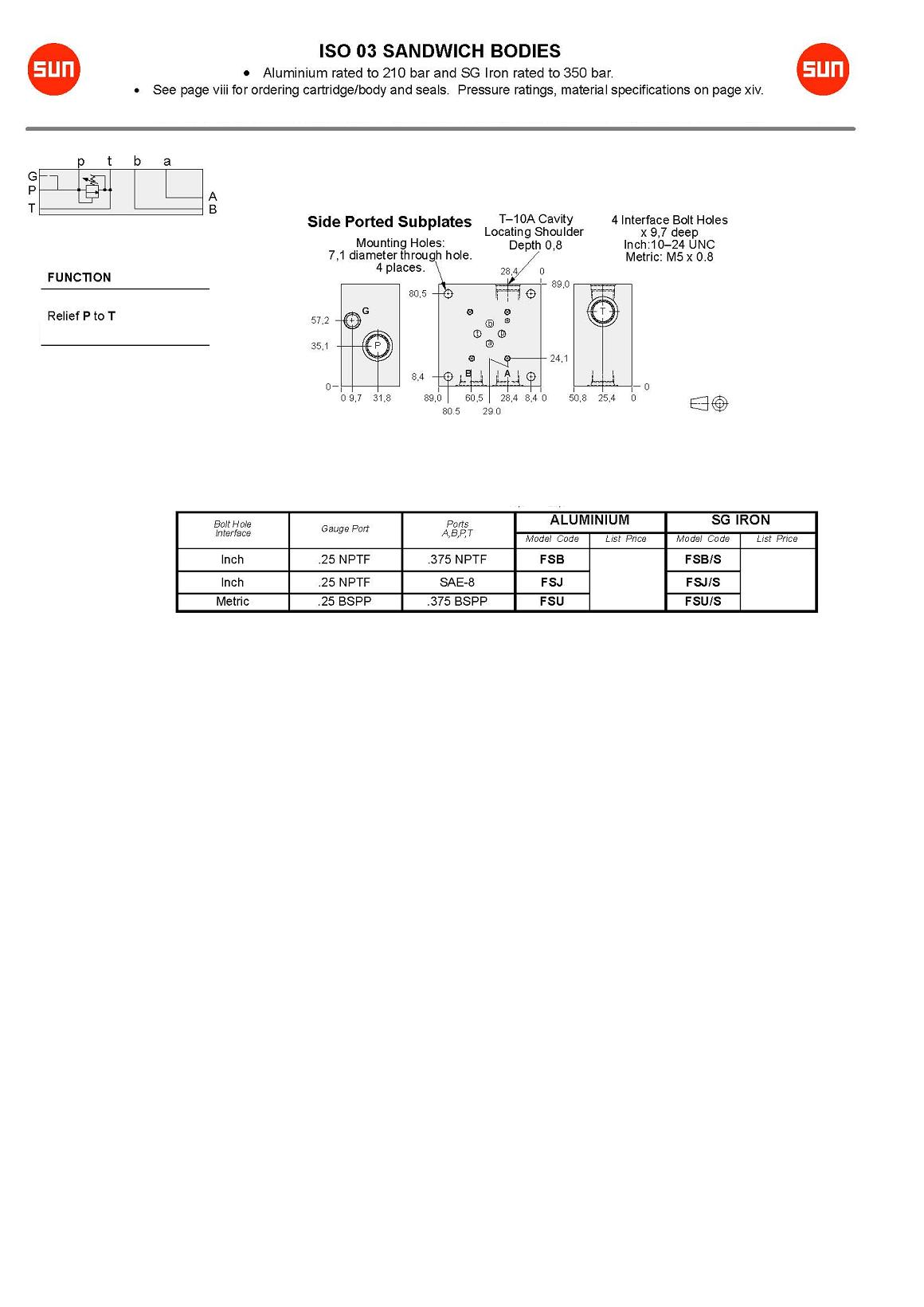

ISO 03, single station, relief on P to T, side ports.
Model
Port Size

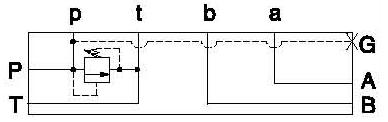

FSU with T-10A
P, T, A, B - G3/8"
WCG with T-10A
P, T, A, B - G1/2"
Hydnet - the specialist in intelligent hydraulic systems
For specific functions requiring dedicated valves or components, sub plates with integrated cavities are available. These are also compatible with sandwich manifolds from any manufacturer and come in the same standard sizes (NG6, NG10, NG16, NG25). Integrated cavities allow direct installation of components like pressure relief or pressure reducing valves within the sub plate itself, simplifying installation and reducing the need for external parts.

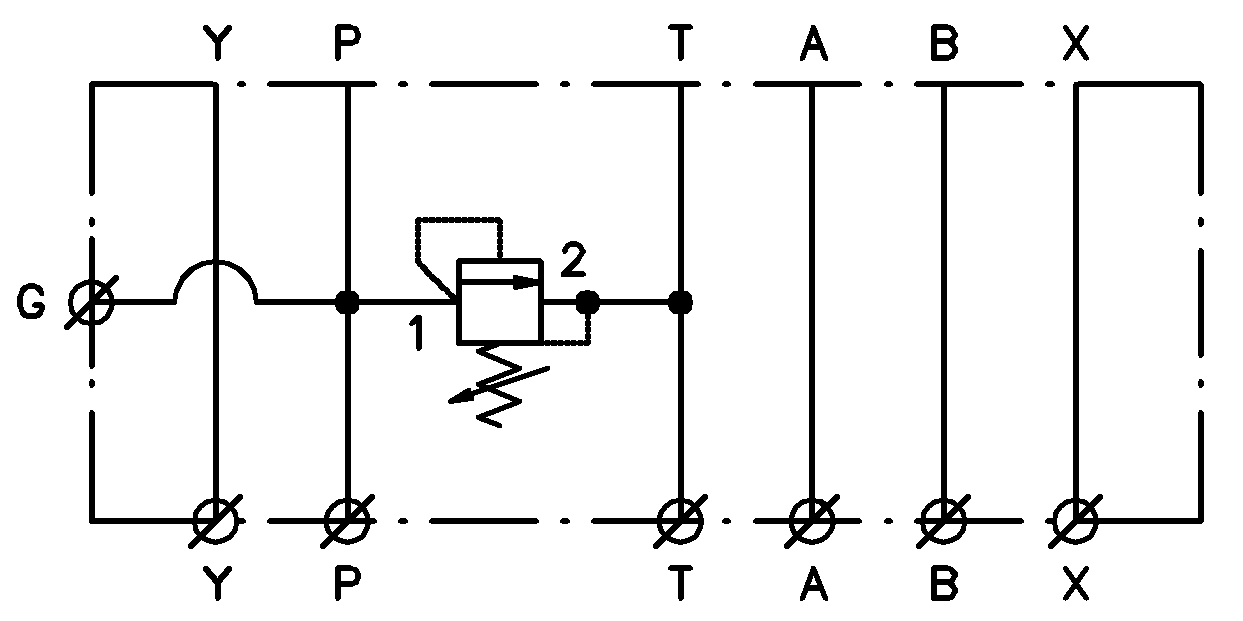

ISO 03, single station, relief on P to T, side ports.

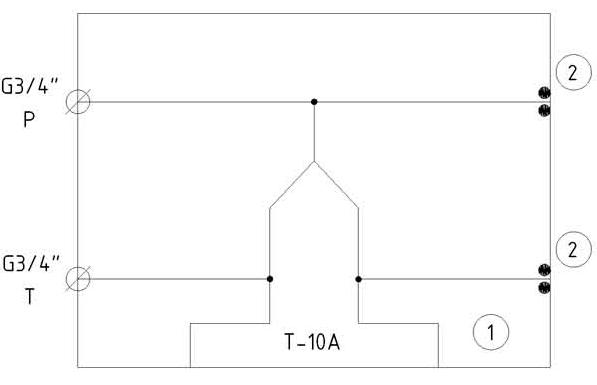

ISO 03, bolt-on T-10A for HN06-X-G3/4-G1/2 and HN06-XL, side ports.

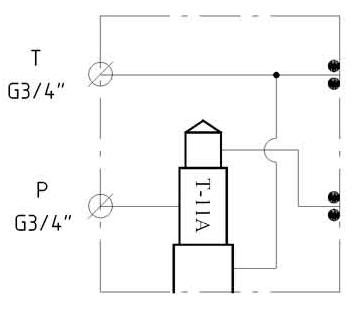

ISO 03, bolt-on T-11A for HN06-X-G3/4-G1/2 and HN06-XL, side ports.
ISO 05, single station, relief on P to T, side ports.
ISO 07, single station, side ports, relief on P to T.
ISO 08, single station, side ports, relief on P to T.
ISO 07, single station, bottom ports, relief on P to T.
