Manifolds for motors

Manifolds for motors

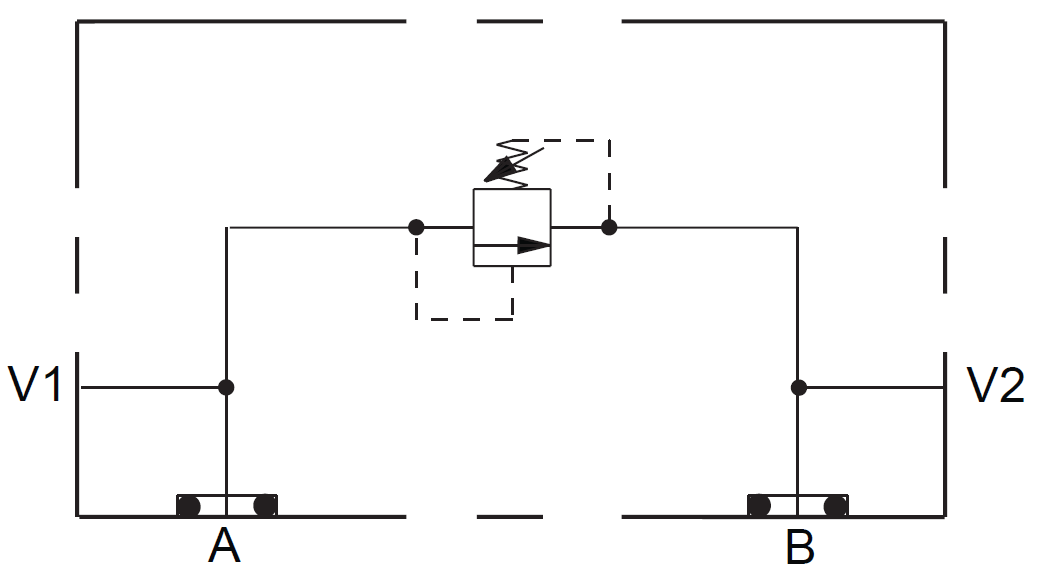

Motor mount manifold

Cross-port relief A to B.

Model
Port Size
Cavity
Motor
WVW
G1/2"
T-10A
Danfoss OMS
PDF
STP
WVL
G1/2"
T-10A
Danfoss OMP/OMR
PDF
STP
WLW
G3/4"
T-10A
Eaton Char-Lynn H/S/T
PDF
STP
ZFL/S
G3/4"
T-10A
Danfoss OMT
PDF
STP

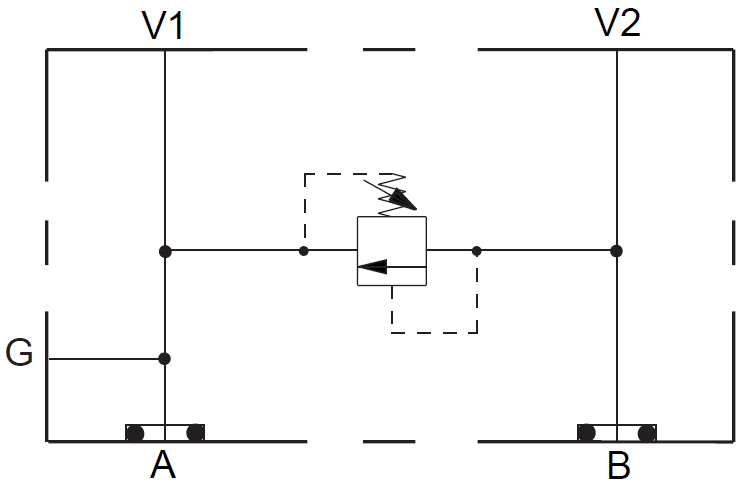

Motor mount manifold

Cross-port relief B to A.

Model
Port Size
Cavity
Motor
WVT
G1/2"
T-10A
Danfoss OMS
PDF
STP
WVI
G1/2"
T-10A
Danfoss OMP/OMR
PDF
STP
WMW
G3/4"
T-10A
Eaton Char-Lynn H/S/T
PDF
STP
ZFL/S
G3/4"
T-10A
Danfoss OMT
PDF
STP
Motor mount manifold

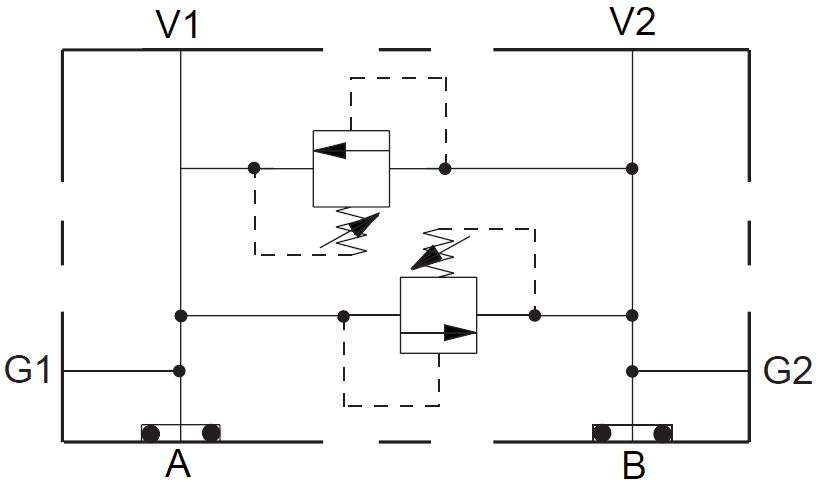

Cross-port relief A to B and B to A.

Model
Port Size
Cavity
Motor
WVQ
G1/2"
T-10A
Staffa B010
PDF
STP
WVF
G1/2"
T-10A
Staffa B010
PDF
STP
WLZ
G3/4"
T-10A
Staffa B010
PDF
STP
B210-16V-J11
G 1"
T-3A
Danfoss OMV
PDF
STP
B610-24V-J11
G3/4"
T-10A
Staffa B010
PDF
STP
YVB
G1/2"
T-10A
Staffa B010
PDF
STP
VZM
G1/2"
T-10A
Staffa B010
PDF
STP
YVP
SAE 3/4"-C61
T-10A
Eaton Char-Lynn 4000/6000
PDF
STP
XTV
SAE 1 1/4"-C61
T-3A
Eaton Char-Lynn 10000
PDF
STP
XXX
G1"
T-10A
Staffa B080/B100/B060
PDF
STP
XXP
G1"
T-3A
Staffa B150/B200/B125
PDF
STP
WBZ
G1/2"
T-3A
Staffa B270/B325/C270/C325
PDF
STP
g3-4-en
G3/4"
T-10A
Danfoss OMV
g1-2-en
G1/2"
T-10A
Eaton Char-Lynn 2000
Motor mount manifold

Cross-port relief A to B and B to A one doublecartridge in sandwich.

Model
Port Size
Cavity
Motor
X9D
Sandwich
T-3A
Eaton Char-Lynn 2000
PDF
STP
Motor mount manifold

Cross-port relief A to B and B to A, brakeport.

Model
Port Size
Cavity
Motor

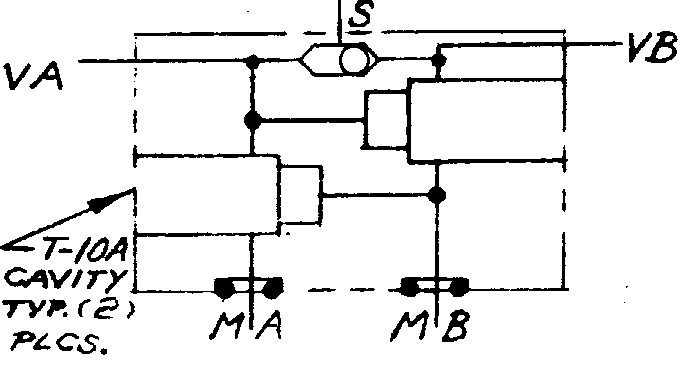

YVA
SAE #10
T-10A
Eaton Char-Lynn 2000
PDF
STP
YRFS
G1"
T-3A + T-5A
Staffa B080/B100/B060
PDF
YRFS
G1"
T-3A + T-5A
Staffa B150/B200/B125
PDF
Motor mount manifold

Sequence valve A to B and B to A.

Model
Port Size
Cavity
Motor

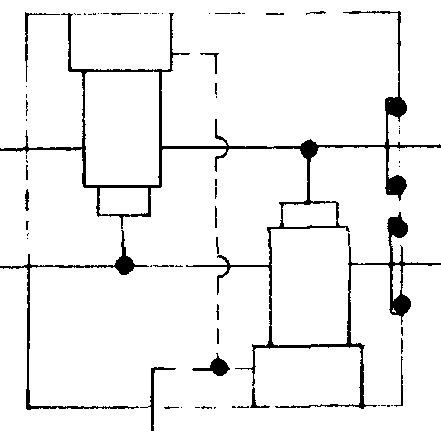

YTR
SAE 1 1/4"-C61
T-17A
Eaton Char-Lynn 10000
PDF
STP

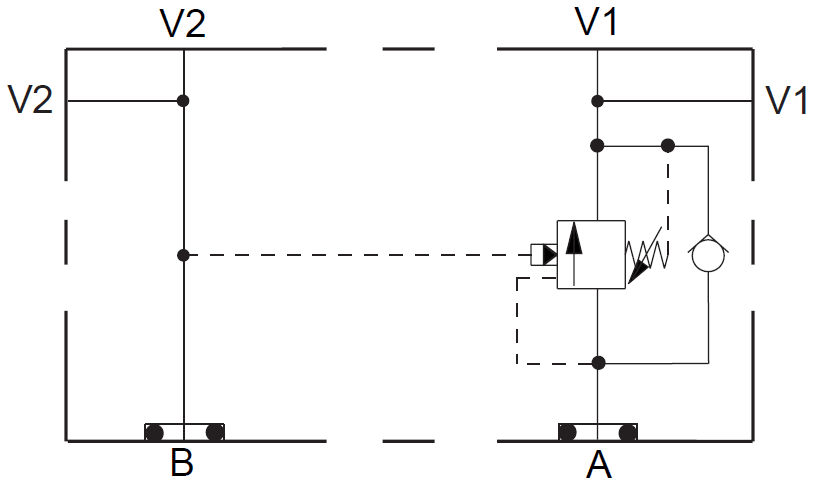

Motor mount manifold

Counterbalance in A.

Model
Port Size
Cavity
Motor
WZG
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WQF
G1/2"
T-2A
Danfoss OMS
PDF
STP
WKJ
G3/4"
T-2A
Eaton Char-Lynn 2000
PDF
ZDM
G1/2"
T-11A
Danfoss OMP/OMR
PDF
STP
ZNM
G3/4"
T-2A
Danfoss OMT
PDF
STP

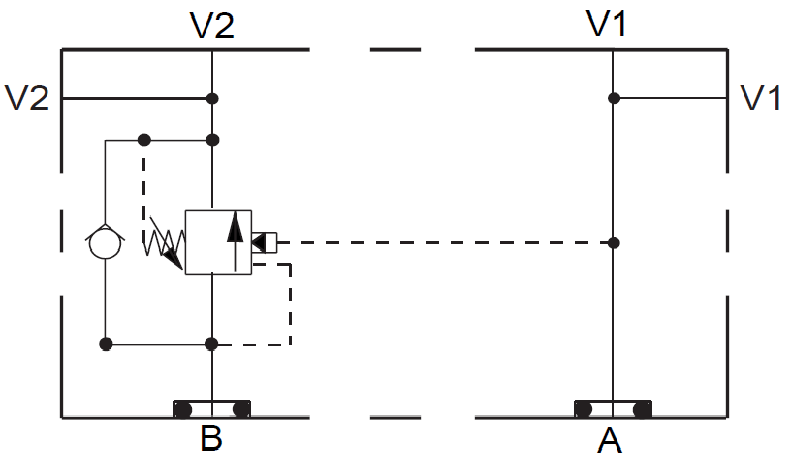

Motor mount manifold

Counterbalance in B.

Model
Port Size
Cavity
Motor
WZD
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WNF
G1/2"
T-2A
Danfoss OMS
PDF
STP
ZDL
G1/2"
T-11A
Danfoss OMP/OMR
PDF
STP
ZNN
G3/4"
T-2A
Danfoss OMT
PDF
STP
XYJ
G3/4"
T-17A
Staffa B080/B100/B060
PDF
STP
XYJ
G3/4"
T-17A
Staffa B150/B200/B125
PDF
STP
sae-_12-en
SAE #12
T-11A
Danfoss OMP/OMR
g3-4-en
G3/4"
T-11A
Danfoss OMP/OMR
Motor mount manifold

Counterbalance in A, brakeport.

Model
Port Size
Cavity
Motor
WZR
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WQO
G1/2"
T-2A
Danfoss OMS
PDF
STP
WKQ
G3/4"
T-2A
Eaton Char-Lynn 2000
PDF
ZDW
G1/2"
T-11A
Danfoss OMP/OMR
PDF
STP
ZNQ
G3/4"
T-2A
Danfoss OMT
PDF
STP
Motor mount manifold

Counterbalance in B, brakeport.

Model
Port Size
Cavity
Motor
WZN
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WQL
G1/2"
T-2A
Danfoss OMS
PDF
STP
WKT
G3/4"
T-2A
Eaton Char-Lynn 2000
PDF
STP
ZDZ
G1/2"
T-11A
Danfoss OMP/OMR
PDF
STP
ZNR
G3/4"
T-2A
Danfoss OMT
PDF
STP
Motor mount manifold

Counterbalance in A and B.

Model
Port Size
Cavity
Motor
WZK
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WQI
G1/2"
T-2A
Danfoss OMS
PDF
STP
WDN
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WKW
G3/4"
T-2A
Staffa B080/B100/B060
PDF
STP
YTV
G1/2"
T-11A
Danfoss OMT
PDF
STP
YTF
G3/4"
T-2A
Staffa B080/B100/B060
PDF
STP
XTZ
G3/4"
T-2A
Staffa B080/B100/B060
PDF
STP
VZX
SAE 3/4"-C61
T-2A
Eaton Char-Lynn 4000/6000
PDF
STP
VTT
SAE 1 1/4"-C61
T-17A
Eaton Char-Lynn 10000
PDF
STP
XXK
G3/4"
T-2A
Eaton Char-Lynn 2000 2-hast.
PDF
STP
XYC
G1 1/2"
T-17A
Staffa B150/B200/B125
PDF
STP
Motor mount manifold

Counterbalance in A and B, brakeport.

Model
Port Size
Cavity
Motor
WZU
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
U8F
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WQR
G1/2"
T-2A
Danfoss OMS
PDF
STP
WDK
G1/2"
T-11A
Eaton Char-Lynn H/S/T
PDF
STP
WKZ
G3/4"
T-2A
Eaton Char-Lynn 2000 2-hast.
PDF
STP
U9G
G3/4"
T-2A
Eaton Char-Lynn 2000 2-hast.
PDF
STP
XTT
G1/2"
T-11A
Danfoss OMT
PDF
STP
XYT
G3/4"
T-2A
Eaton Char-Lynn 2000 2-hast.
PDF
STP
XVC
G3/4"
T-2A
Eaton Char-Lynn 2000 2-hast.
PDF
STP
VWZ/T
SAE 3/4"-C61
T-2A
Eaton Char-Lynn 4000/6000
PDF
STP
Motor mount manifold

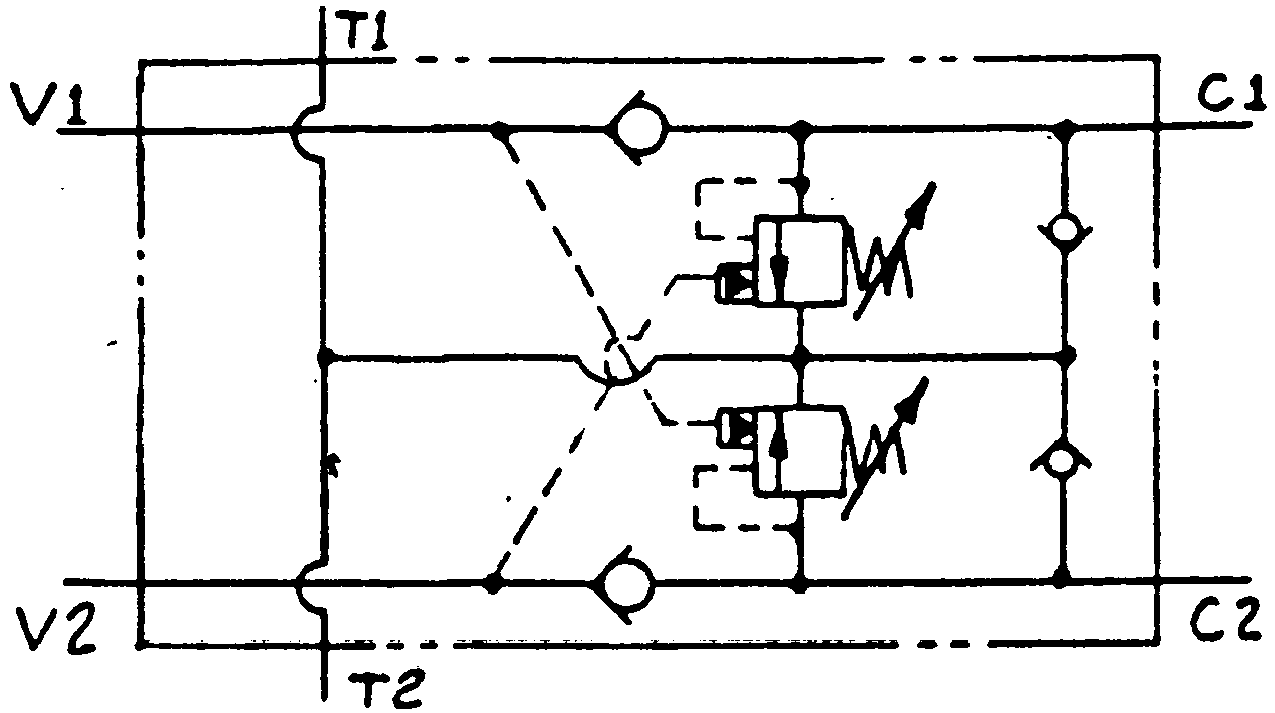

Cushion lock, anti-cav checks.

Model
Port Size
Cavity
Motor
X9U
G 1/2"
T-11A + T-13A
Volvo F12-60
PDF
sae-_10-en
SAE #10
T-11A + T-13A
Eaton Char-Lynn H/S/T
g1-2-en
G1/2"
T-11A + T-13A
Eaton Char-Lynn H/S/T
g-3-4-en
G 3/4"
T-11A + T-13A
Eaton Char-Lynn H/S/T
g-1-2-en
G 1/2"
T-11A + T-13A
Volvo F12-60

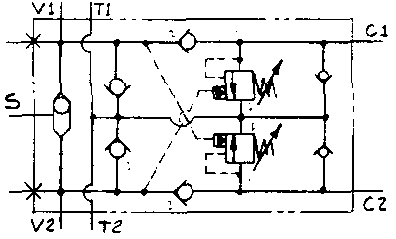

Motor mount manifold

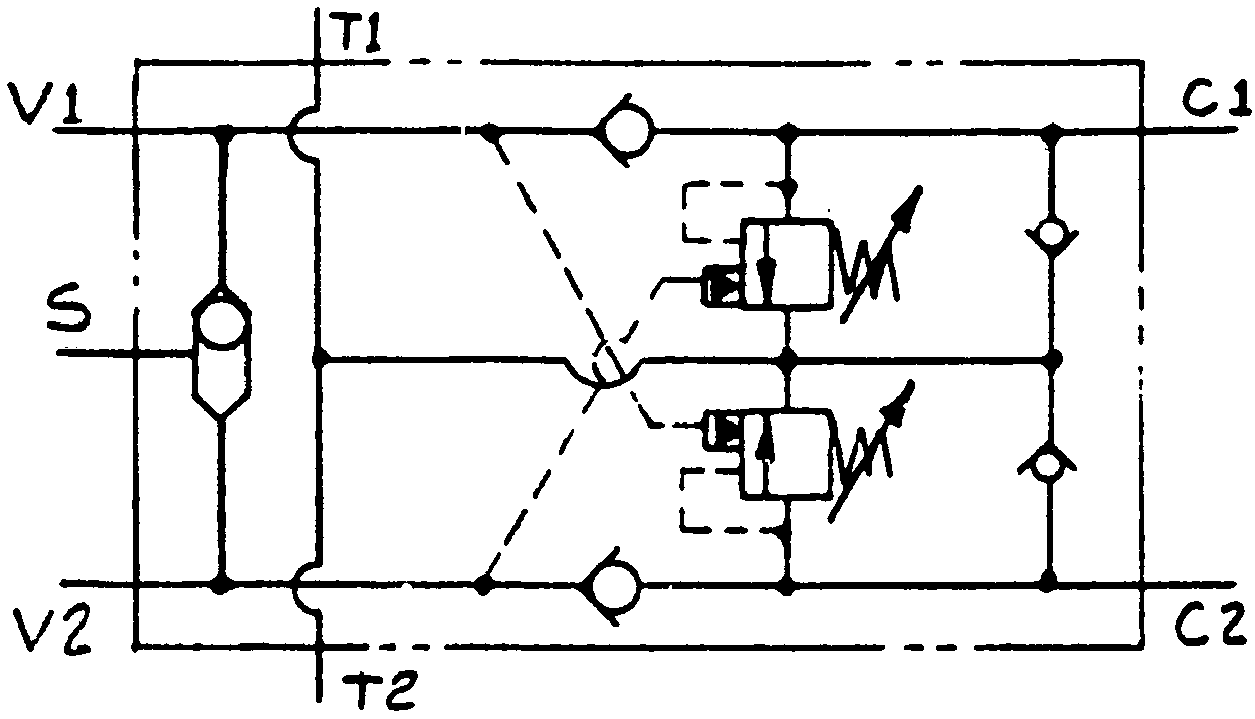

Cushion lock, anti-cav checks, shuttle valve.

Model
Port Size
Cavity
Motor
YCCK
SAE #10
T-11A + T-13A
Eaton Char-Lynn H/S/T
PDF

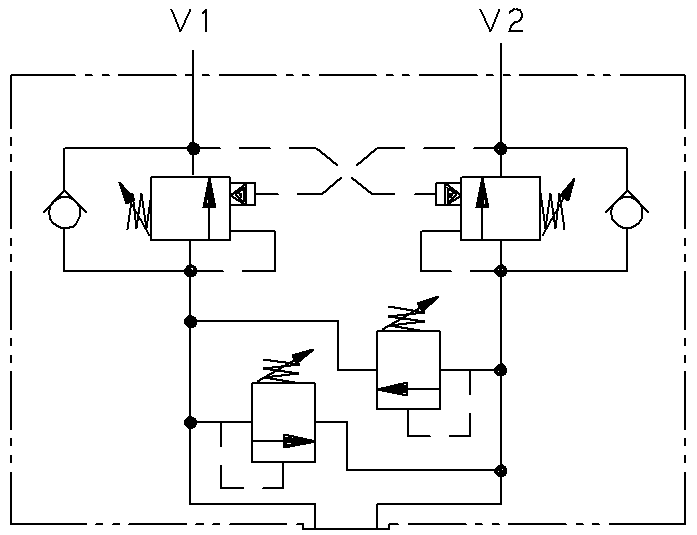

Motor mount manifold

Dual counterbalance, cross line relief.

Model
Port Size
Cavity
Motor
YCCX
G1/2"
T-11A + T-10A
Eaton Char-Lynn H/S/T
PDF

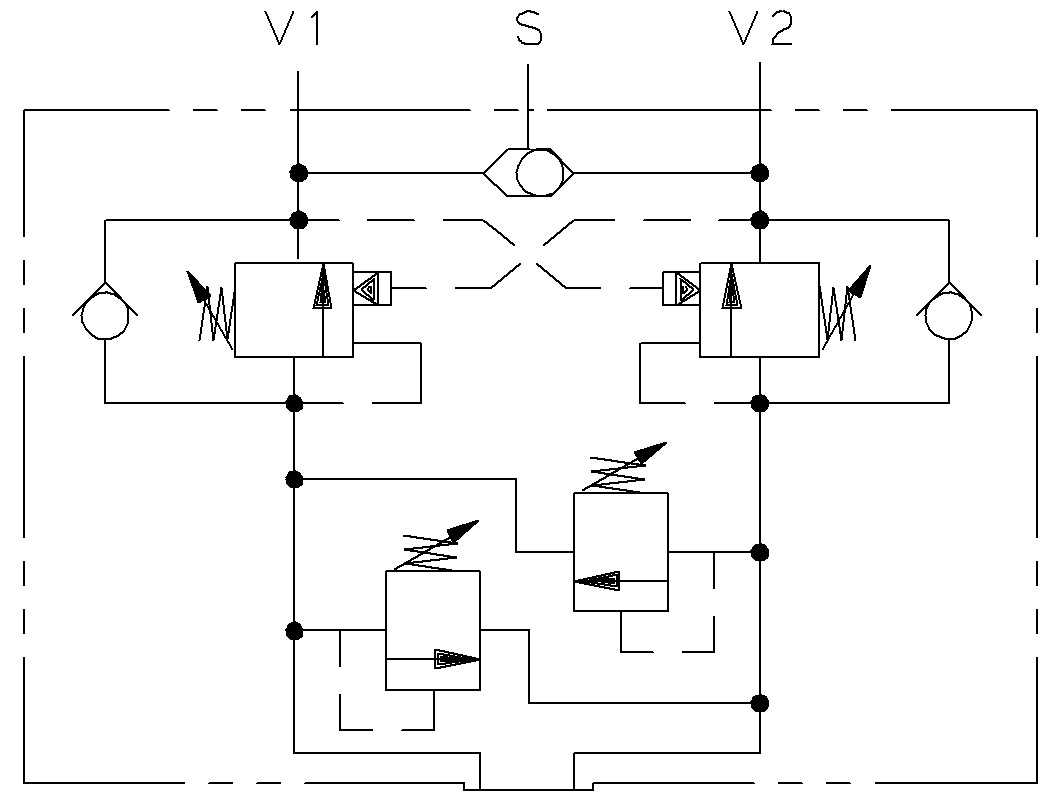

Motor mount manifold

Dual counterbalance, cross line relief, shuttle.

Model
Port Size
Cavity
Motor
YCCW
G1/2"
T-11A + T-10A
Eaton Char-Lynn H/S/T
PDF

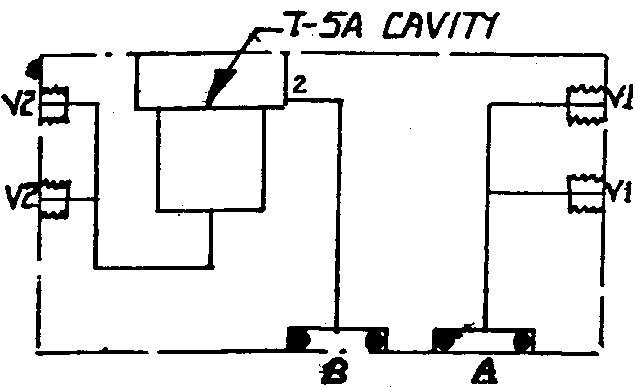

Motor mount manifold

Flow control, meter-out on A and B.

Model
Port Size
Cavity
Motor
WXI
G1/2"
T-5A
Danfoss OMS
PDF
STP
WMT
G1/2"
T-5A
Danfoss OMP/OMR
PDF
XWV
G1/2"
T-13A
Eaton Char-Lynn H/S/T
PDF
