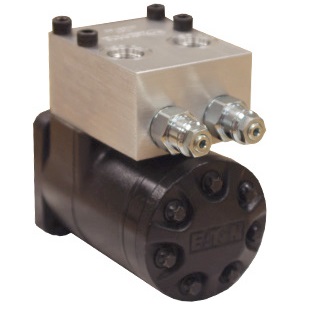

Motor mounted bodies are specifically designed for direct mounting on hydraulic motors, offering a compact, secure, and efficient solution to integrate essential hydraulic functions directly on the motor. By mounting valves and control functions directly on the hydraulic motor, the need for additional piping and hoses is eliminated, reducing the risk of leaks and simplifying installation. Sun Hydraulics offers a wide range of motor-mounted bodies featuring pressure control, flow control, and load control functions. These are compatible with many types of hydraulic motors, including well-known brands such as Eaton/Char-Lynn, Danfoss, Staffa, HPI, White, TRW Ross, and others.
Cross-port relief A to B.
Cross-port relief B to A.
Cross-port relief A to B and B to A.
Cross-port relief A to B and B to A one doublecartridge in sandwich.
Cross-port relief A to B and B to A, brakeport.
Sequence valve A to B and B to A.
Counterbalance, turnable.
Cross-port relief A to B and B to A, anti-cav checks.
Counterbalance in A.
Counterbalance in B.
Counterbalance in A, brakeport.
Counterbalance in B, brakeport.
Counterbalance in A and B.
Counterbalance in A and B, brakeport.
Cushion lock.
Cushion lock, shuttle valve.
Cushion lock, anti-cav checks.
Cushion lock, anti-cav checks, shuttle valve.
Dual counterbalance, cross line relief.
Dual counterbalance, cross line relief, shuttle.
Swing control.
Shuttle only.
Flow control single meter-in on A.
Flow control single meter-in on B.
Flow control single meter-out on A.
Flow control single meter-out on B.
Flow control dual meter-in on A and B.
Flow control, meter-out on A and B.
Flowcontrol A to B or B to A, bleed-off.
Flow control dual meter-out with shuttle.
Gauge port adaptor.
Subplate direct on motor.
The bodies are available in aluminum for pressures up to 210 bar and steel for higher-pressure applications up to 350 bar. Thanks to these material options, the bodies can be used in a variety of environments and applications, from lighter machinery to demanding industrial systems.
Motor mounted bodies are ideal when a robust, space-saving, and reliable solution is needed to integrate control functions directly on the hydraulic motor, improving system performance while simplifying service and maintenance.
