Mounting plates

Mounting plates

At the base of a sandwich manifold stack, a sub plate (also called mounting plate) is required. This plate serves as the foundation to assemble and connect multiple hydraulic functions into a compact unit. Sub plates come in various designs, available as single stations or multi-station blocks that can hold multiple functions. Common sizes include NG6 (ISO/CETOP 03), NG10 (ISO/CETOP 05), NG16 (ISO/CETOP 07), and NG25 (ISO/CETOP 08). Multi-station blocks can accommodate up to 10 stations, enabling complex and flexible hydraulic solutions. These sub plates are designed for connection either to the side or downward, depending on the system layout and requirements. They often feature ready-made ports for easy installation of pressure gauges or other measuring instruments, simplifying monitoring and maintenance.

Sub plates

ISO 03, single station, side ports.

Model
Port Size
Test Port
HN06-SK-G1/2"-MPTAB
P, T, A, B - G1/2"
Test ports AB
PDF
HN06-S-G3/4"-MP
P, T, A, B - G3/4"
Test port P
PDF
p-t-a-b-g1-2-en
P, T, A, B - G1/2"
Test ports AB
p-t-a-b-g3-8-en
P, T, A, B - G3/8"
Test ports AB
Sub plates

ISO 03, single station, bottom ports.

Model
Port Size
Test Port
HN06-B-G1/2"-WC
P, T, A, B - G1/2"
-
PDF
STP
Sub plates

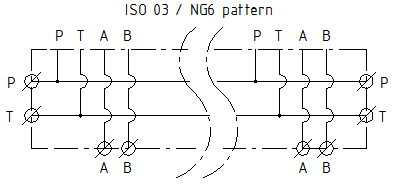

ISO 03, multistation, side ports.

Model
Port Size
Test Port
HN06-1-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-2-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-3-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-4-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-5-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-6-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-7-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
HN06-8-S-G1/2"-G3/8"-WC
P, T - G1/2" A, B - G3/8"
-
PDF
STP
Sub plates

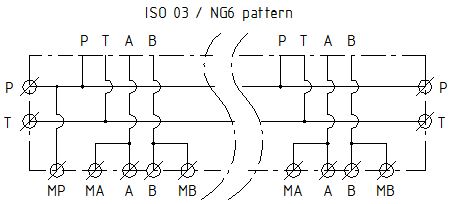

ISO 03, multistation, side ports, test ports.

Model
Port Size
Test Port
HN06-1-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-2-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-3-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-4-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-5-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-6-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-7-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-8-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-9-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-10-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
Sub plates

ISO 03, multistation, side ports, test ports, extra long.

Model
Port Size
Test Port
HN06-2L-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-3L-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-4L-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-5L-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
HN06-6L-S-G3/4"-G1/2"-MPAB-WC
P, T - G3/4" A, B - G1/2"
-
PDF
STP
Sub plates

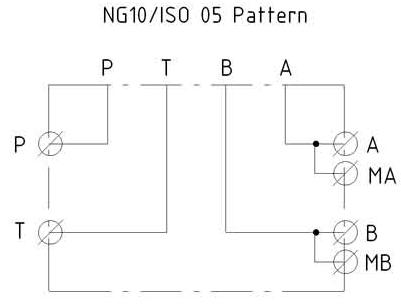

ISO 05, single station, side ports.

Model
Port Size
Test Port
HN10-S-G1"-MP
P, T, A, B - G1"
Test port P
PDF
p-t-a-b-g3-4-en
P, T, A, B - G3/4"
-
p-t-a-b-g1-2-en
P, T, A, B - G1/2"
-
Sub plates

ISO 05, single station, bottom ports.

Model
Port Size
Test Port
p-t-a-b-g3-4-en
P, T, A, B - G3/4"
-
p-t-a-b-g1-2-en
P, T, A, B - G1/2"
-
Sub plates

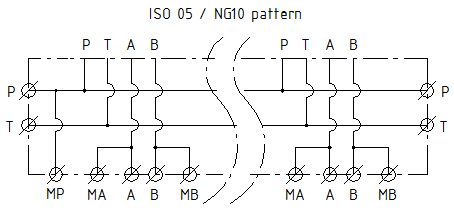

ISO 05, multistation, side ports, test ports.

Model
Port Size
Test Port
HN10-1-S-G1"-G3/4"-MAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-2-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-3-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-4-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-5-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-6-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-7-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-8-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-9-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-10-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
Sub plates

ISO 05, multistation, side ports, test ports, extra long.

Model
Port Size
Test Port
HN10-2L-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-3L-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-4L-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-5L-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
HN10-6L-S-G1"-G3/4"-MPAB-WC
P, T - G1" A, B - G3/4"
-
PDF
STP
Sub plates

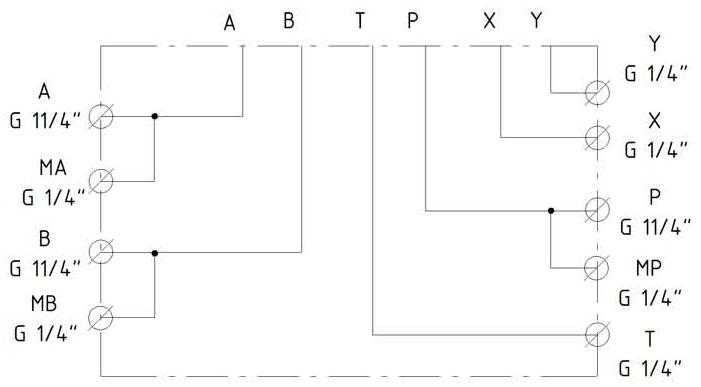

ISO 07, single station, side ports.

Model
Port Size
Test Port
HN16-S-G11/4"-MPAB-WC
P, T, A, B - G1 1/4"
Test ports P,A,B + x,y
PDF
STP
Sub plates

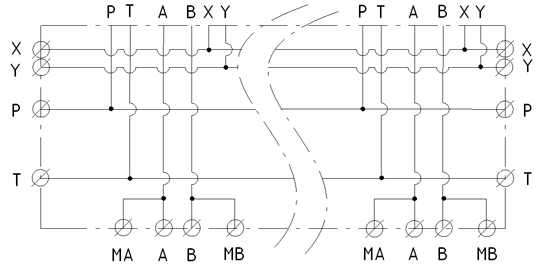

ISO 07, multistation, side ports, test ports.

Model
Port Size
Test Port
HN16-1-S-G11/2"-MAB-WC
P,T,A,B - G11/2"
-
PDF
STP
HN16-2-S-G11/2"-MAB-WC
P,T,A,B - G11/2"
-
PDF
STP
HN16-3-S-G11/2"-MAB-WC
P,T,A,B - G11/2"
-
PDF
STP
HN16-4-S-G11/2"-MAB-WC
P,T,A,B - G11/2"
-
PDF
STP
HN16-5-S-G11/2"-MAB-WC
P,T,A,B - G11/2"
-
PDF
STP
HN16-6-S-G11/2"-MAB-WC
P,T,A,B - G11/2"
-
PDF
STP
Sub plates

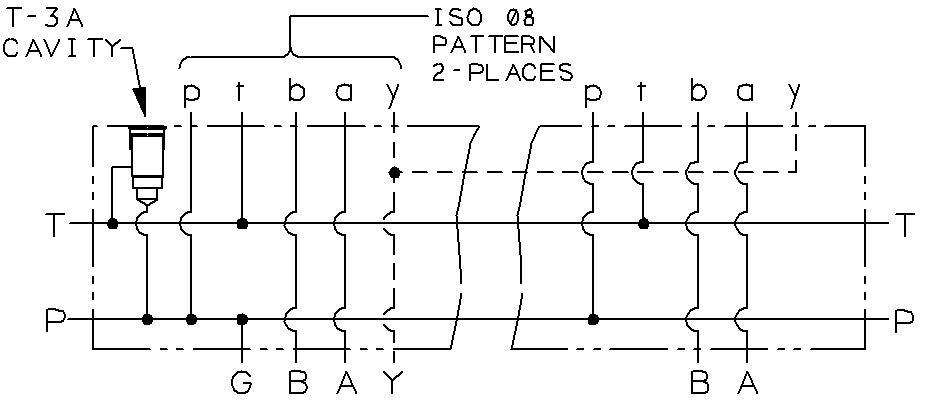

ISO 08, multistation, side ports, relief T-3A on P to T.

Model
Port Size
Test Port
VLX/S with T-3A 1 section
P,A,B - G1"; T - G11/4"
-
PDF
STP
VLY/S with T-3A 2 sections
P,A,B - G1"; T - G11/4"
-
PDF
STP
VLZ/S with T-3A 3 sections
P,A,B - G1"; T - G11/4"
-
PDF
STP
Sub plates

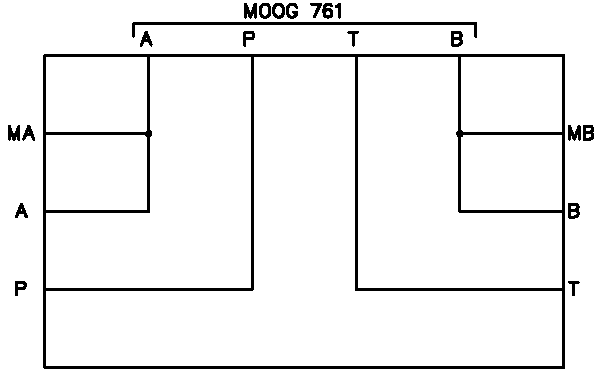

MOOG 761, single station, side ports, test ports.

Model
Port Size
Test Port
A910-30L-J11
P, T, A, B - G1/2"
Test ports AB
PDF
STP
